Text Parsing in Rust with Nom

As soon as you want to do anything non-trivial with respect to parsing text using Rust (or any language) you should use some kind of parser…

Text parsing in Rust with Nom

As soon as you want to do anything non-trivial with respect to parsing text using Rust (or any language) you should use some kind of parser implementation. Writing a working parser for anything but the most trivial content is non-trivial. Unless you want to learn parsers (perhaps you’re taking a compiler course), better to use an existing tool/framework.

One approach is to use a parser generator, such as lex/flex or yacc/bison. In this approach you write a grammar for what you want to parse using the format those tools take, and they generate code that you can then use to parse whatever it is you’re parsing.

Another approach is to programmatically define your parser, and that’s where the nom. Rust crate comes in. In a sense you can think of nom as a DSL for writing parsers. The crate contains a bunch of functions that do very simple, specific things and you combine and compose them to parse your text. You construct your parser “bottom up” looking at the lowest level constructs and combining them to build more complex items. Perhaps you need to match an encoded secret in a configuration file, and these encoded passwords are of the form some_secret: {bcrypt}A87ADB6ADF in which case you could use the tag function in nom:

fn secret_parser(i: &str) -> IResult<&str, &str> {
  tag("{bcrypt}")(i)
}

which will strip off the {bcrypt} prefix and return the rest of the input. Maybe your secret parser needs to support two alternatives, bcrypt and custom in which case you could modify the above example to use the alt function like so, to have two alternatives to match.

fn secret_parser(i: &str) -> IResult<&str, &str> {
    alt((tag("{bcrypt}"), tag("{custom}")))
}

Generally speaking, the nom functions all have the same basic signature:

pub fn some_parser<T, Input, Error: ParseError<Input>>(
  tag: T,
) -> impl Fn(Input) -> IResult<Input, Input, Error>

They are essentially function generators, with the idea that you compose them together to create more complex parsers …

fn my_parser(input: &str) -> IResult<&str, MyType> {
    foo(bar(baz1, baz2))(input)?
}

A Realistic Example

Rather than just showing some standalone snippets, let’s create something somewhat useful. Let’s see how we could use nom for parsing HTTP protocol messages, or part of them anyway … the request line and the headers. I’ll leave parsing the request body to you if you like.

Of course there are crates out there to do this, so I wouldn’t go down this route if I was trying to parse HTTP messages myself. Use something like the hyper crate instead.

HTTP Request Line

Let’s start with the HTTP protocol’s request line. Starting with the HTTP RFC 2616 you can find what constitutes valid messages including the ABNF grammar, which stands for Augmented Backus-Naur Form. If you’ve taken a compiler and/or theoretical computer science course you probably came across BNF. RFC 2616 specifies the ABNF for the HTTP protocol, such as basic rules for what are valid characters and tokens, what is a valid HTTP version and of course what is a valid protocol request line.

In ABNF, a request line is defined as:

Request-Line = Method SP Request-URI SP HTTP-Version CRLF

Each of the items to the right of the = is required and is defined somewhere in the RFC. The SP and CRLF are defined in the basic rules link I provided above, and are basically what you’d guess. Then there’s the Method, Request-URI and HTTP-Version which are specified in their own subsections. These may further break down into ABNF expressions. If you look at Request-URI you’ll see it defined as

Request-URI = "*" | absoluteURI | abs_path | authority

The pipe | symbol in ABNF signifies logical “or” --- in other words the request URI has one of those parts.

Given this, what would the nom-based parser look like? As with any code, there are several ways you could go about writing this. The request line has three things we want to extract, the HTTP method, the URI and the version. We don’t care about the separating white space or line terminator. And for the HTTP version, we just want the version number itself. We know that it’s HTTP after all! I therefore organized my code into basically three parsers and I return the parsed data as a tuple of (method, path, version). Also, since there’s more to parse after the request line, and given the way the nom parser functions work, there’s also a “the rest of the input” return value that contains what has not been parsed yet. So a function to parse the request line is:

Breaking this down, lines 2—5 define my nom-based parser functions. I construct my domain-specific parsers building on the low level nom constructs. In this case, looking at the method_parser function defined at line 2, I use four different nom parsers:

• terminated --- this parser takes two parsers; the first one defines how to match the content I want to keep, and the second parser defines how to match what I want to discard.
• take_while1 --- what I want to keep is defined by this parser. This parser takes a function defining what is valid to keep until some condition. In this case I want to keep alphabetic characters. This parser also shows a common pattern in the nom API which is the 1 at the end of the function. There are many functions that have a 1 or a 0 at the end, signifying there should be “one or more” or “zero or more” of the specific thing, similar to the ? and * regular expression characters.
• is_alphabetic --- this parser does exactly what it says: returns true while the input is an alphabetic character.
• multispace1 --- this parser defines what the terminated parser should discard. In this case it should consume and discard one or more spaces. This takes care of the space after the method.

Putting that all together I have a variable method_parser that’s a Fn that takes a &[u8] and returns an IResult<&[u8], &[u8]> where the first value in the tuple is the “rest” of the input that wasn’t consumed, and the second value is the matched HTTP method bytes. If there was an error, the result has an Err(ParseError) from nom.

One thing I’m going to skip over in this post for brevity is the different APIs nom has for “complete” or “streaming” inputs. For example, the take_while1 function is nom::bytes::complete::take_while1 but there is also a nom::bytes::streaming::take_while1 and the difference manifests in the errors generated if the input “runs out” while parsing. You can read the docs for details.

Assuming a valid request line then, the result of calling method_parser(b"GET /foo HTTP/1.1") is (b"GET", b"/foo HTTP/1.1").

The next parser, that path_parser simply looks for anything that isn’t a space, to define what is valid, and then uses the multispace1 function again to define the terminator. Finally the http_version_parser looks for the tag of HTTP/ and drops it, while keeping the content that is matched by version_parser. This uses the nom function preceeded which as you can probably tell is the opposite of the terminated function we’ve already seen. The terminated parser keeps the content of the first parser argument and drops the content of the second while the preceeded parser drops the content matched by the first parser and keeps the content matched by the second parser. (There’s also a match_eol parser function which is something that I wrote; it’s not from nom. It just looks for tag("\r\n") in the input. I broke it out so I can re-use it elsewhere.)

Putting it all together I chain these parsers together using the tupleparser from nom and finally converting the matched method, path and version to &str values from the &[u8] slices.

HTTP Headers

After consuming the HTTP request line, the “rest” of the input should be the HTTP headers. There are two types, request and response headers (really three types since there are “entity” headers). As we’re parsing the request, I’m only going to cover the request headers, which are defined here in the RFC.

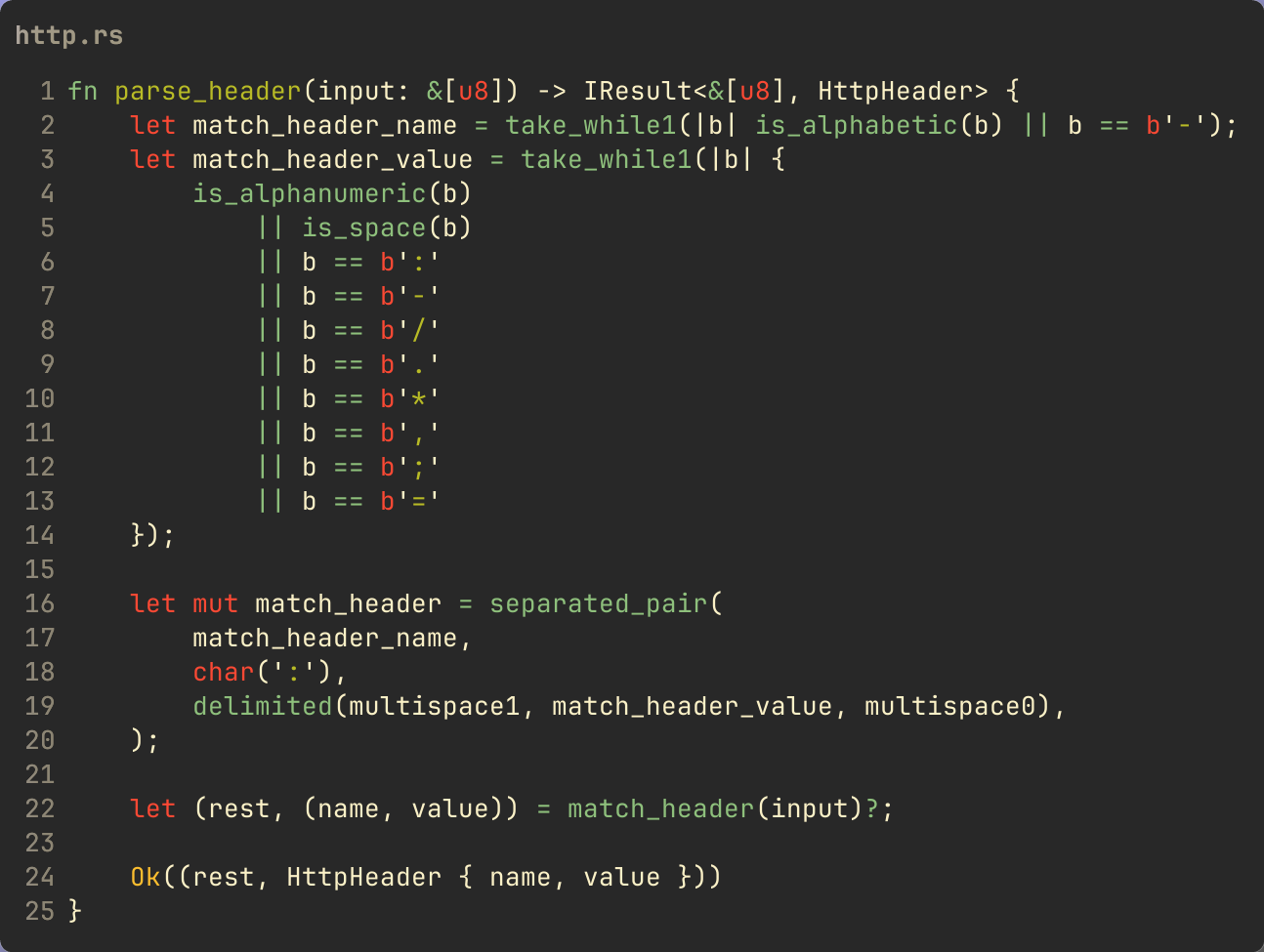

All headers ABNF syntax are defined here in the RFC, but to summarize are name/value pairs separated by a :. Here is the function I wrote using nom to parse a single header:

You should be able to grok what’s going on here given the earlier example. What’s new here is the nom method separated_pair which takes three parsers, the first and third defining the pair of things to keep, and the middle one what to match to discard. In this case we’re skipping the : separator. The match_header parser then will match one header line. To match all the headers, just call this in a loop. The HTTP headers section itself, when there are no more headers to read, is indicated by double CRLF, that is "\r\n\r\n". Following that is the request body, but as I said at the start I’m not going to get into that. Reading the body isn’t really about parsing, since it’s opaque bytes, and all we know is what’s provided in the headers we just parsed.

Conclusion

Hopefully this has given you a taste for what parsing with nom is like. There is obviously a lot more … I didn’t cover all the various parsers the crate provides. If this intro whetted your appetite, go check out their docs. And as I also mentioned at the start, there are multiple ways to write this example. Please let me know if you’ve got a “better” or just different way. I’m a beginner with nom just as I am with Rust overall. I’m doing this to learn, and so if you have something to share to help me learn, please share it!
