Using CodeSnap or nvim-silicon For Screenshots in Neovim

In a previous blog I discussed using nvim-silicon to capture a screenshot of my Neovim buffer. At the time it felt like a good solution, and it is still a viable and usable tool. Recently I have come across another solution for creating a screenshot within Neovim. It is called CodeSnap. In this blog I will briefly show how to use CodeSnap and discuss how it compares to Silicon.

CodeSnap

I cover only CodeSnap v1.0 here.

Install

CodeSnap uses a Rust libary. As of v1.0 CodeSnap has a pre-built library for some architectures. For others, you need to build from source so you will need a Rust environment. The pre-built libary is available for

x86_64-unknown-linux-gnu
x86_64-apple-darwin
aarch64-apple-darwin

I use Lazy to manage my plugins and configuration in Neovim, so to install CodeSnap it’s as simple as adding

return {
    {
        "mistricky/codesnap.nvim",
        build = "make build_generator",
    },
}

to e.g. lua/plugins/codesnap.lua. Even though CodeSnap does have the pre-built library for a few architectures, the docs still recommend building from source.

Configure

CodeSnap has several configuration options, including things like theme, font, watermark, line numbers and of course key maps. Since my primary use case is to capture content for my blog, I want a relatively minimalistic image, as compact as possible without fancy borders or backgrounds and such. Since I’m also mostly capturing code snippets, I like line numbers. My configuration is


return {
    {
        "mistricky/codesnap.nvim",
        build = "make build_generator",
        opts = {
            bg_padding = 0,
            save_path = "~/Pictures/Screenshots/",
            has_line_number = true,
            mac_window_bar = false,
        },
    },
}

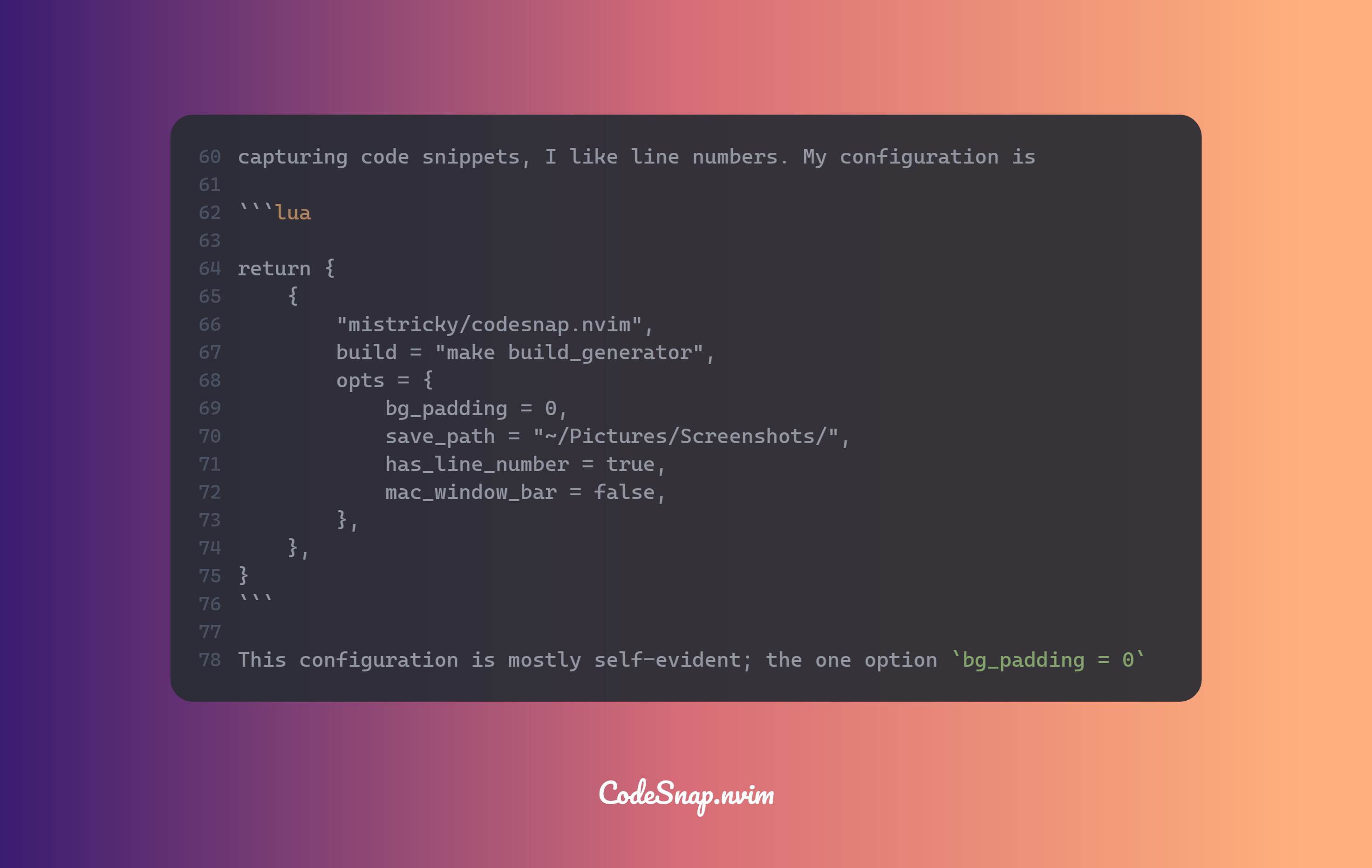

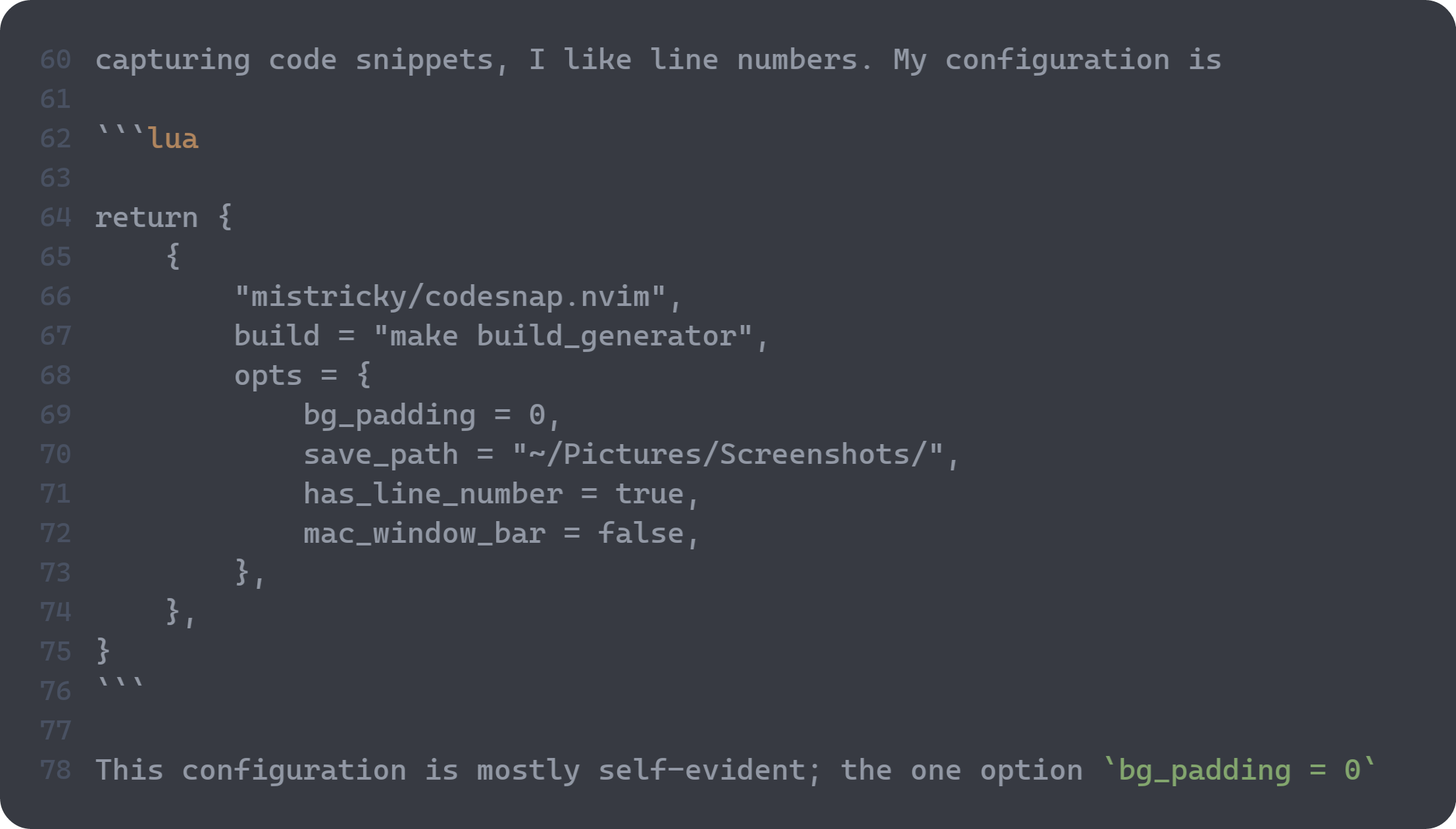

This configuration is mostly self-evident; the one option bg_padding = 0 removes any background around the actual content. As such something like a theme doesn’t come into play. The following screenshots taken with CodeSnap, with and without the bg_padding set, shows the difference.

The full set of configuration options can be found here.

Features and Usage

CodeSnap supports the following commands:

CodeSnap
CodeSnapASCII
CodeSnapSave
CodeSnapHighlight
CodeSnapHighlightSave

CodeSnap basically has two modes, saving to the clipboard and saving to a file. The commands with Save in them save to a file, in the location specified in the configuration save_path.

The commands with Highlight in them allow you to select lines to be highlighted in the resulting screenshot. This is done by presenting a popup window in Neovim where you select the lines you want to be highlighted in the resulting screenshot.

Finally the CodeSnapASCII is pretty unique I think, and captures an ASCII version of a screenshot to the clipboard, with for example a border using ASCII characters like to save to a text file.

WARNING

Interestingly, when I used CodeSnapASCII, saved the resulting text to a file and then tried to get a screenshot of that text, CodeSnap paniced! Perhaps some ASCII character used to draw the border caused an issue? I don’t know, and as of this writing I haven’t submitted a bug or looked into it further. I wanted to show what the resulting captured ASCII looked like, but I guess this will be an exercise for the reader. Maybe it will be fixed when you read this and try it. Or it might be platform-specific (I’m on Ubuntu).

Both the clipboard and save-to-file commands work fine. One thing the docs note is an issue with Wayland if you’re using the clipboard commands.

Comparing CodeSnap and nvim-silicon

Right off the bat, one thing to note in comparing CodeSnap with nvim-silicon is that the nvim-silicon plugin requires the Silicon tool to be installed. Not a huge issue but it is a dependency. As dependencies go though, you might consider that less of an issue than the CodeSnap dependency on having Rust available to build the plugin, if you’re not on one of the architectures for which there’s the pre-built CodeSnap libary.

Feature	CodeSnap	nvim-silicon
Save to file (1)	✅	✅
Save to clipboard	✅	✅
Save to file and clipboard (2)	❌	✅
Save without selecting first (3)	❌	✅
Themes	✅	✅
Custom background image	✅	✅
Fonts (4)	✅	✅
Watermark	✅	❌ (5)
ASCII screenshot	✅	❌
Line numbers	✅	✅ (6)
Highlight lines (7)	✅	✅
Code syntax highlighting	✅	✅
File path breadcrumb	✅ (8)	❌
Custom breadcrumb path character	✅	❌

1. In CodeSnap the generated filename starts with CodeSnap and then has a timestamp. This makes it hard to know what the screenshot is without opening the file. In nvim-silicon, you can configure the generated filename. For example, I set it up to use the buffer name and then a timestamp (ouptut is the configuration parameter for the output file):

   output = function()
       local vpath = vim.fn.expand("~") .. "/Pictures/Screenshots/"
       local buf_name = vim.api.nvim_buf_get_name(vim.api.nvim_get_current_buf())
       local fname = vim.fn.fnamemodify(buf_name, ":t")
       return vpath .. fname .. "-" .. os.date("!%Y%m%d-%H%M%S") .. ".png"
   end,

   I did not see a way to do that with CodeSnap. Trying to use the same function approach resulted in an error when I tried to generate a screenshot. Perhaps my lua-fu is not good enough.

2. With nvim-silicon you can save to a file and save to clipboard with one invocation, though it’s implemented as two calls to the silicon tool.

3. CodeSnap requires you to select something to capture a screenshot, but with nvim-silicon if you don’t first select something, it will take the full contents of the nvim buffer and generate a screenshot of that, as if you selected the whole file. This obviously can be slow-ish if the file is large, and the resulting screenshot has the text very small. I’m not sure how useful this is, but it is possible, and maybe for smaller files it’s a time saver.

4. CodeSnap has specific fonts it supports but nvim-silicon supports any font that’s installed (i.e. any returned by fc-list).

5. No watermark directly in nvim-silicon but the docs mention that perhaps using a custom image you can get the same effect.

6. By default, the line numbers from nvim-silicon start with 1, whereas the CodeSnap line numbers by default match the line numbers in the file that were captured. For nvim-silicon, you have to configure a function to return the real starting line number e.g.:

   line_offset = function(args)
       return args.line1
   end,

   but at least it’s possible!

7. Both CodeSnap and nvim-silicon support having specific lines highlighted in the resulting screenshot. The nvim-silicon approach is perhaps more “Neovim-esque” in that you use the Neivom mark capability with the ‘mark highlight’ command mh whereas as mentioned CodeSnap creates a popup buffer where you then use the visual select commands e.g. v / shift-v / ctrl-shift-v. Which you like better is a matter of taste.

8. The breadcrumb of the file path is the full path of the file, although it appears that the leading slash is not shown. Sometimes I might just want the current file name without the full path breadcrumb, or relative to the current directory e.g. if I’m editing say src/foo.rs I’d like to have the file path shown as src/foo.rs rather than home/ray/blogs/src/foo.rs. I don’t see a way to have the file name or path in nvim-silicon.

Summary

Both CodeSnap and nvim-silicon are good options for capturing snapshots within Neovim. The nvim-silicon plugin has a few more nobs to tweak, and is a little more sophisticated in its configuration handling (such as supporting functions for computing config values, as shown above). CodeSnap has a cool ASCII option for embedding screenshots in text files that doesn’t exist in nvim-silicon, but it’s a somewhat niche feature. Both seem pretty performant, except for the full-file screenshot option that nvim-silicon supports depending on file size. You could argue that since nvim-silicon uses the silicon tool it’s a plus since you can then also take screenshots of file content outside of Neovim.

One thing I noticed is that if I try and take a screenshot of the feature table with it’s Unicode values ✅ and ❌, it works fine with CodeSnap but nvim-silicon gives a warning that it can’t find the font values for them and the resulting screenshot doesn’t show any character there. Maybe this is a font configuration issue in nvim-silicon. I’m using the default font for CodeSnap but for nvim-silicon I have font = "JetBrainsMonoNLNerdFontMono-ExtraBold". Commenting that out didn’t help any.

Either choice is a good one, though I might say that if your needs are simpler CodeSnap is better since nvim-silicon is a bit more sophisticated, though of course if any of the feature differences are important to you that is obviously the deciding factor.
